Home ? Product Center ? Other ? Switch ? Illuminated Switch ? R2902A ?

The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.

Illuminated Push Button Switches R2902A

• Pole-Position：Momentary Type,SPST With LED

• Contact Rating：30VDC,0.1A

• Contact Resistance：By Method of Voltage Drop

• Insulation Resistance：

• Dielectric Strength：500 VAC for 1 Minute

• Operating Force：250±100gf

• Operating Life：50,000 cycles

• Operating Temperature Range：-40℃ ~ 85℃

• Total Travel：1.2±0.3mm

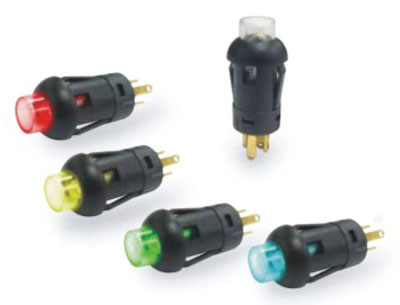

Illuminated Push Button Switches R2902A Figure

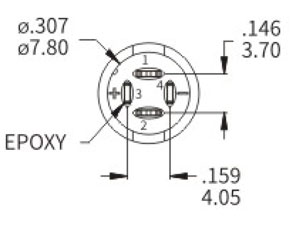

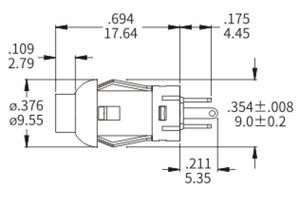

Illuminated Push Button Switches R2902A Structure Diagram

Part Number	Pole-Position	Contact Rating	Contact Resistance	Dielectric Strength	Operating Force	Operating Life	Operating Temperature Range	Total Travel	Download
R2902A-XX-XX	Momentary Type,SPST With LED	30VDC,0.1A	By Method of Voltage Drop	500 VAC for 1 Minute	250±100gf	50,000 cycles	-40℃ ~ 85℃	1.2±0.3mm	NULL
R2902A-K(Non-LED)	Momentary Type,SPST With LED	30VDC,0.1A	By Method of Voltage Drop	500 VAC for 1 Minute	250±100gf	50,000 cycles	-40℃ ~ 85℃	1.2±0.3mm	NULL
